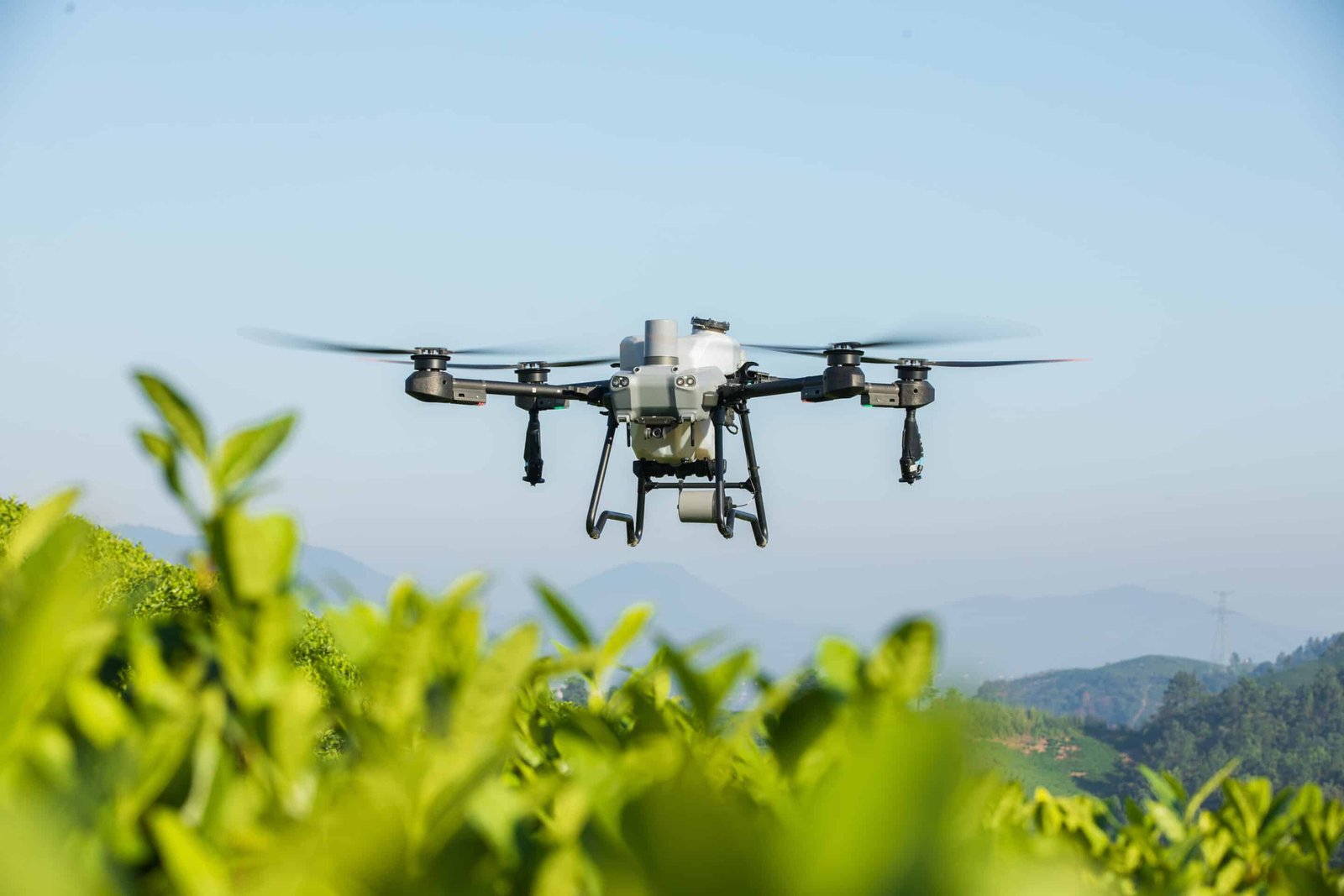

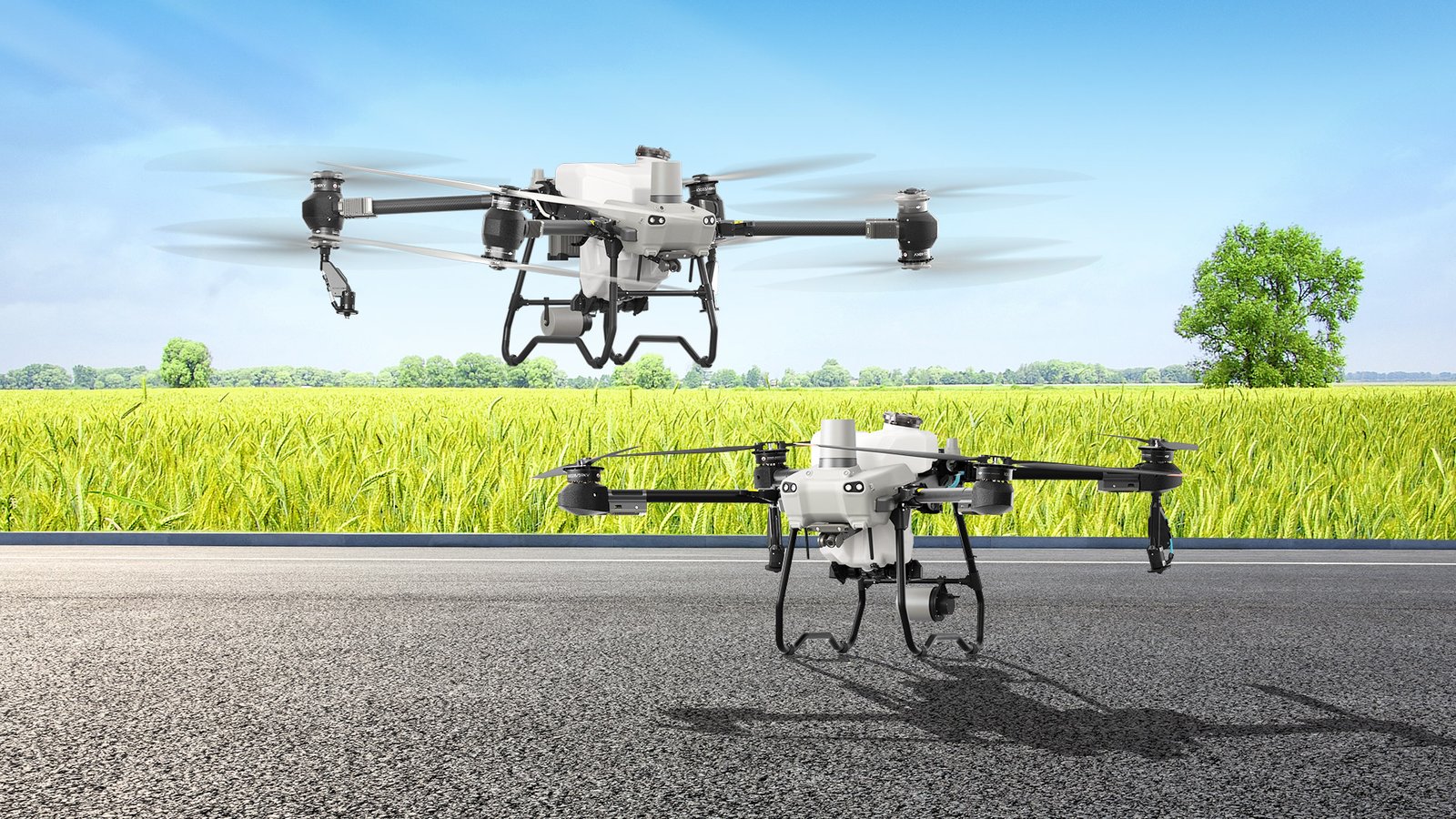

The DJI Agras T25 is a compact and versatile agricultural drone designed for efficient spraying, spreading, and surveying tasks. Tailored for small to medium-sized farms, it offers a balance between payload capacity and operational agility.

🚁 Key Specifications

Weight:

Aircraft: 25.4 kg (excluding battery)

With Battery: 32 kg

Max Takeoff Weight:

Spraying: 52 kg

Spreading: 58 kg

Dimensions:

Unfolded: 2585×2675×780 mm

Folded: 1050×690×820 mm

Spray Tank Capacity: 20 L (20 kg payload)

Spreader Capacity: 25 kg (35 L max)

Flow Rate:

Spraying: Up to 16 L/min (2 nozzles)

Optional 4-nozzle kit: Up to 24 L/min

Battery: 15,000 mAh DB1560

Charging Time: 9–12 minutes

Transmission Distance: Up to 7 km (FCC)

Operating Frequency: 2.4–2.4835 GHz, 5.725–5.850 GHz

GNSS: GPS + Galileo + BeiDou

🧠 Advanced Features

Dual Atomizing Spraying System: Ensures uniform and fine droplets, minimizing pesticide usage and reducing drift.

Magnetic Drive Impeller Pump: Provides leak-free operation and consistent flow.

Obstacle Avoidance: Equipped with front and rear phased array radars and a binocular vision system for enhanced terrain following and obstacle detection.

High-Resolution FPV Gimbal Camera: Offers real-time imaging for precise operations and monitoring.

DJI O3 Transmission: Ensures stable video transmission, especially beneficial when operating over tall crops.

Offline Operations: Supports autonomous missions without the need for continuous internet connectivity.

🌾 Applications

Spraying: Efficient application of pesticides and fertilizers over large areas.

Spreading: Distributing dry fertilizers or seeds uniformly.

Surveying: Capturing high-resolution aerial images for field analysis and planning.

Terrain Following: Adapting to varying ground elevations to maintain consistent application rates.
