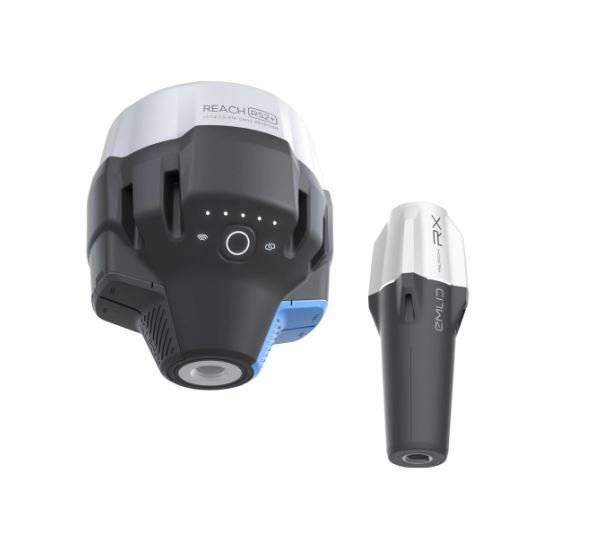

The Emlid Reach RS2+ is a high-precision, multi-band RTK GNSS receiver designed for surveying, mapping, and navigation applications. It offers centimeter-level accuracy and robust performance in challenging environments.

📌 Key Features

Multi-Band GNSS Support: Tracks GPS/QZSS (L1C/A, L2C), GLONASS (L1OF, L2OF), BeiDou (B1I, B2I), and Galileo (E1B/C, E5b) signals.

Positioning Accuracy:

RTK: Horizontal: 7 mm + 1 ppm, Vertical: 14 mm + 1 ppm.

PPK: Horizontal: 5 mm + 0.5 ppm, Vertical: 10 mm + 0.5 ppm.

Static: Horizontal: 4 mm + 0.5 ppm.

Convergence Time: Typically around 5 seconds.

Communication:

Built-in LTE modem with global coverage.

Supports NTRIP, VRS, RTCM3, and position output in NMEA, LLH/XYZ formats.

Data Logging: RINEX logging at update rates up to 10 Hz.

Storage: 16 GB internal storage.

Battery Life:

16 hours as an LTE RTK rover.

22 hours of logging.

Environmental Protection: IP67 rating for dust and water resistance.

Operating Temperature: -20°C to +65°C.

Connectivity:

Wi-Fi 802.11 b/g/n.

Bluetooth 4.0/2.1 EDR.

📦 What's Included

Reach RS2+ GNSS receiver.

Carrying case.

Antenna.

USB-C cable.

Quick start guide.
