SIYI ZT30 Optical Pod Four Sensors 4K 8MP

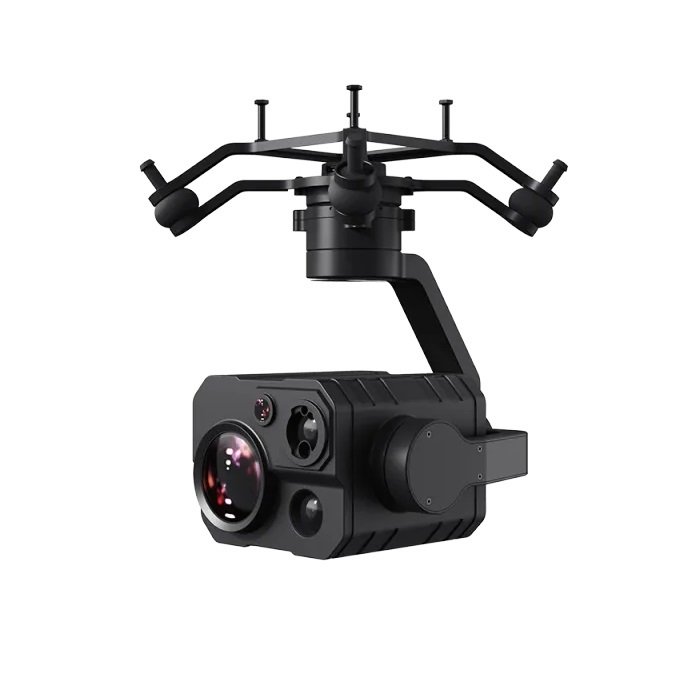

The SIYI ZT30 is a versatile, AI-enhanced optical pod that merges four key imaging technologies into a single 3-axis stabilized unit. Designed for demanding aerial and ground-based missions, it combines visual clarity, thermal insight, distance measurement, and wide-area framing—all in one compact package.
AI Smart Tracking: Identifies and follows moving targets (vehicles, people, etc.) using onboard neural processing.
Point-to-Measure Temperature: Tap on thermal feed to retrieve temperature at that point. Supports full-screen and area temperature readings.
Starlight Night Vision & HDR: Enables clear imaging in low-light or high-contrast conditions.
Synchronized Zoom Modes: Infrared and visual zoom cameras work in lockstep, with split-image and synchronized zoom options.
Flexible Mounting & Control: Features limitless yaw rotation, quick-release mounts, and support for modes like inverted operation. Compatible with S.Bus, UART, UDP (Ethernet), ArduPilot, and PX4/MAVLink protocols.
The SIYI ZT30 is a versatile, AI-enhanced optical pod that merges four key imaging technologies into a single 3-axis stabilized unit. Designed for demanding aerial and ground-based missions, it combines visual clarity, thermal insight, distance measurement, and wide-area framing—all in one compact package.
Sensor Suite Overview
| Module | Features |
|---|---|
| Zoom Camera | 30× optical zoom, up to 180× hybrid zoom; 4K resolution (8 MP); high-res stills and video. |
| Thermal Camera | 640×512 resolution, 19 mm lens, 30 fps; captures temperatures from –20 °C to +150 °C (High Gain) or up to +550 °C (Low Gain). |
| Wide-Angle Camera | 2K (2560×1440), 4 MP sensor, ~88° horizontal FOV—ideal for broad situational awareness. |
| Laser Rangefinder | Ranges up to 1,200 m with high precision (±0.1 m at close range, scalable with distance). |
Key Functional Features
AI Smart Tracking: Identifies and follows moving targets (vehicles, people, etc.) using onboard neural processing.
Point-to-Measure Temperature: Tap on thermal feed to retrieve temperature at that point. Supports full-screen and area temperature readings.
Starlight Night Vision & HDR: Enables clear imaging in low-light or high-contrast conditions.
Synchronized Zoom Modes: Infrared and visual zoom cameras work in lockstep, with split-image and synchronized zoom options.
Flexible Mounting & Control: Features limitless yaw rotation, quick-release mounts, and support for modes like inverted operation. Compatible with S.Bus, UART, UDP (Ethernet), ArduPilot, and PX4/MAVLink protocols.
Build & Specs Snapshot
Stabilization: High-precision 3-axis gimbal with ±0.01° vibration control. Pitch: −90° to +25°; unlimited yaw; Roll: ±45°.
Dimensions & Weight:
ZT30 (with quick-release mount): ~182 × 140 × 134.5 mm, 870 g
Quick-release claw: ~140 × 140 × 42.5 mm, 104 g
Power & Durability:
Voltage: 11–25.2 V
Consumption: Avg. 9 W; peak 20 W
Protection: IP4X-rated
Temp Range: –10⁰C to +50⁰C
Connectivity & Storage:
Output: Ethernet video
Control: S.Bus, UART, UDP
Compatible with microSD (up to 128 GB) for onboard recording
Applications
This optical pod excels in missions that demand rich data, adaptability, and autonomy:
Surveillance & Security Monitoring
Search & Rescue (thermal detection + range)
Infrastructure Inspections (with zoom & laser)
Environmental & Wildlife Tracking
Mapping & Panorama Capture
