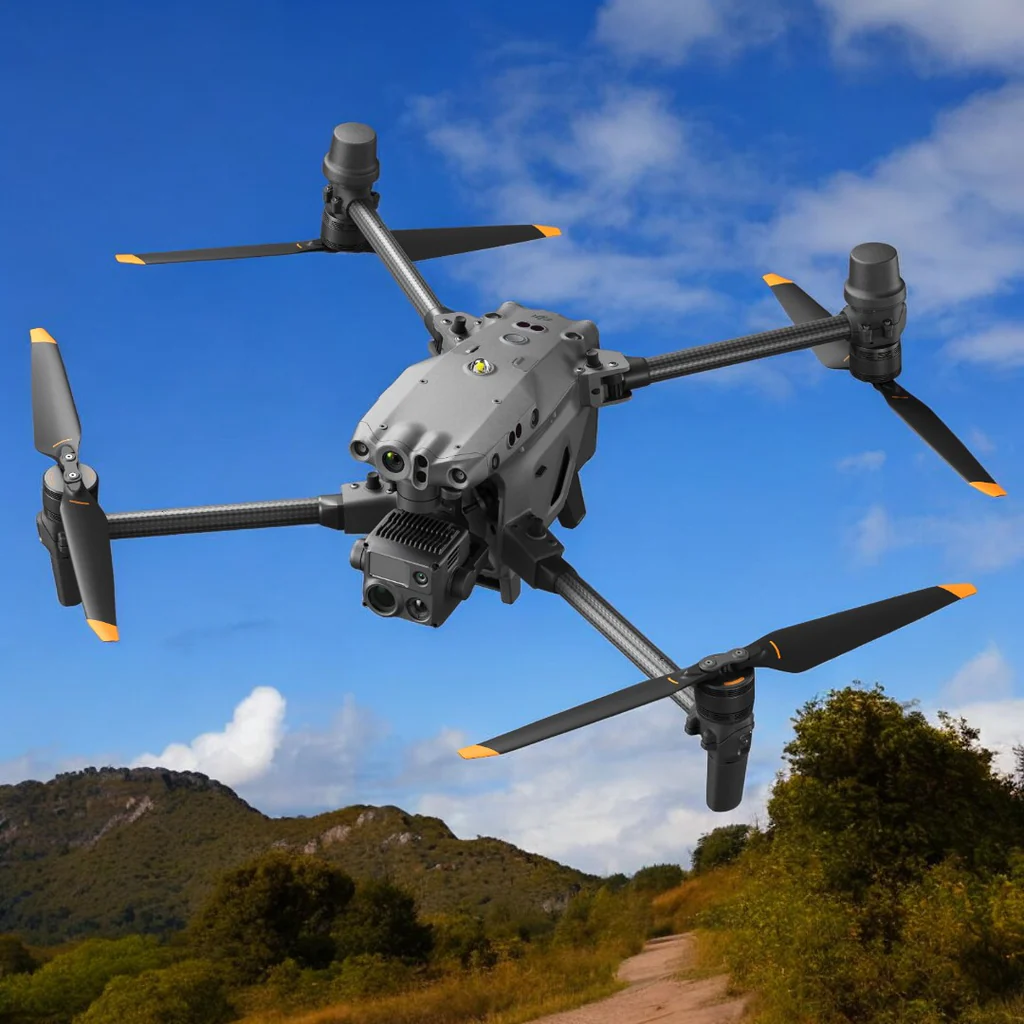

The DJI Matrice 30T (M30T) is an advanced foldable quadcopter tailored for enterprises needing thermal, zoom, and wide-angle imaging plus long-endurance aerial capabilities. Designed to withstand harsh environments, it is packed with redundancy, precise navigation, and strong transmission systems—perfect for inspections, search and rescue, and security missions.

Key Specifications & Performance

Flight Capabilities

Max Flight Time: ≈ 41 minutes (hover ≈ 36 minutes)

Max Speed: Up to ~51 mph / 23 m/s

Wind Resistance: Up to ~15 m/s (≈ 54 km/h)

Operating Temp: –20 °C to 50 °C

Ingress Protection: IP55 dust and splash resistance

Imaging System (Thermal + RGB)

Thermal Camera

Sensor: Uncooled VOx Microbolometer

Resolution: 640×512 (normal), up to 1280×1024 in Super-Resolution

Field of View (DFOV): ~61°; Lens: 9.1 mm (≈ 40 mm equivalent), f/1.0

Accuracy: ±2 °C or ±2% (whichever is larger); NETD ≤ 50 mK

Thermal Measurement Range:

High Gain: –20 °C to 150 °C

Low Gain: 0 °C to 500 °C

Color Palettes & Alarms: Supports various palettes and temperature alarms

Wide-Angle Camera

Sensor: 12 MP, 1/2" CMOS; 4K video @30 fps

FOV: 84°, fixed focal length (24 mm equiv.), aperture f/2.8

Zoom Camera

Sensor: 48 MP, 1/2" CMOS; Optical Zoom: 5–16×; Hybrid Zoom: up to 200×

Photo Res: Up to 8K; Video: 4K @30 fps

FPV Camera

Resolution: 1080p; FOV: ~161°; optimized for low-light

Laser Rangefinder

Range: 3–1200 m; Accuracy: ±(0.2 m + distance × 0.15%)

Navigation & Safety

Sensing: Dual-vision + ToF sensors on all six sides enable robust obstacle avoidance

ADS-B Receiver: Alerts for nearby manned aircraft

RTK & GNSS: High-precision GNSS (GPS, Galileo, BeiDou, optional GLONASS) with RTK accuracy

Controller & Connectivity

Drone: Foldable design for easy portability (~3.8 kg, folded size: 365 × 215 × 195 mm)

Remote (DJI RC Plus):

7" 1920×1200 touchscreen, Wi-Fi 6, Bluetooth 5.1, OcuSync 3 Enterprise (up to ~15 km)

Battery life up to ~6 hours with external battery; IP54 rated

Integration & Software

Flight App: DJI Pilot 2 – mission planning, obstacle visualization, PinPoints, alerts

Mission Management: Compatible with DJI FlightHub 2 (live streaming, annotation, cloud mapping)

SDK Support: Supports Mobile SDK 5 and PSDK for custom payload development

Security: AES-256 encryption on video, storage, and optional cloud backups

Applications

Ideal for public safety, search & rescue, firefighting, infrastructure/powerline inspection, utility monitoring, environmental surveys—especially where thermal detection and high-res zoom are critical. Supports deployment via DJI Dock and enterprise workflows
