The DJI Matrice 3TD with DJI Dock 2 is an advanced autonomous drone system designed for enterprise applications requiring high-efficiency, remote operations. This integrated solution combines the capabilities of the Matrice 3TD drone with the DJI Dock 2, enabling continuous, automated missions with minimal human intervention.

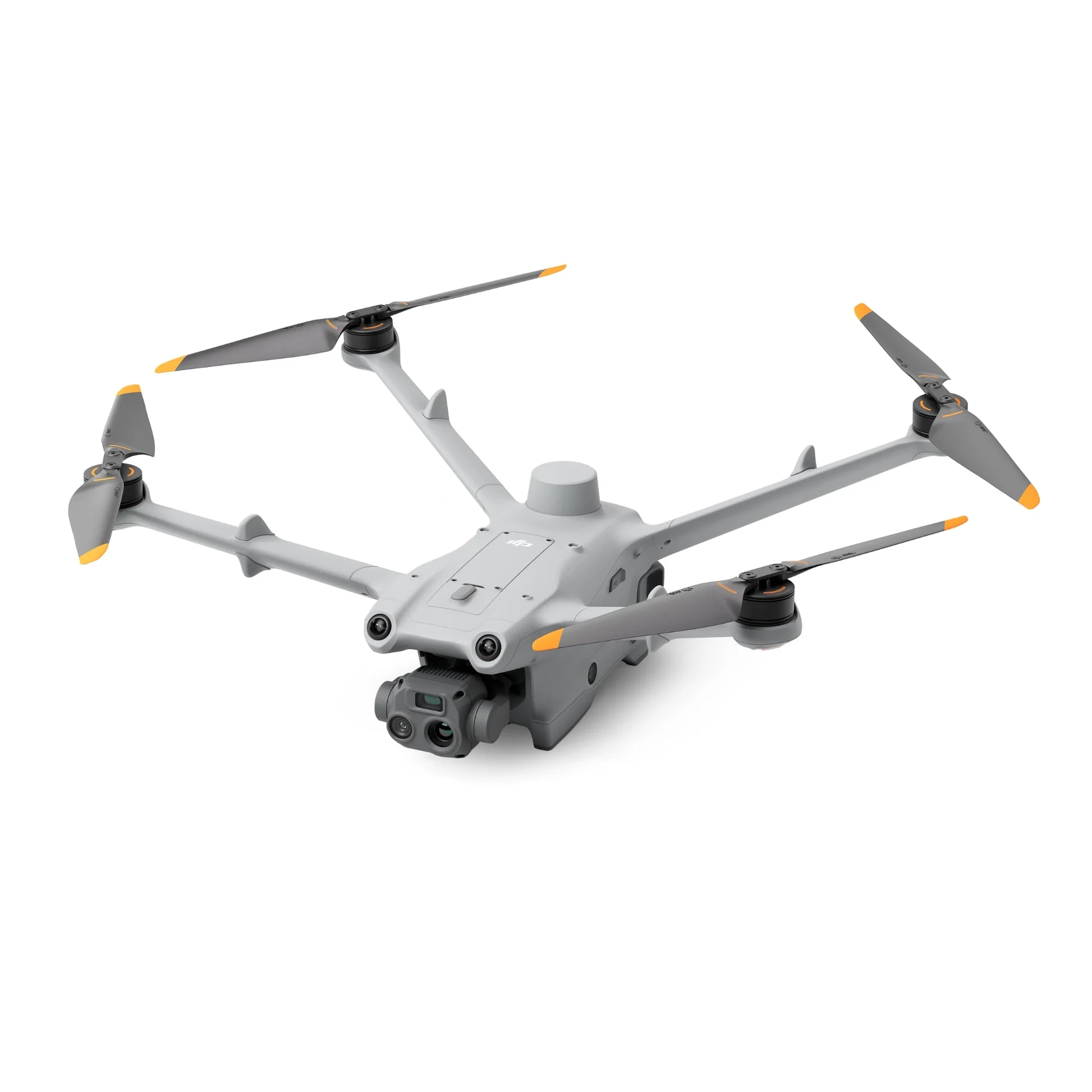

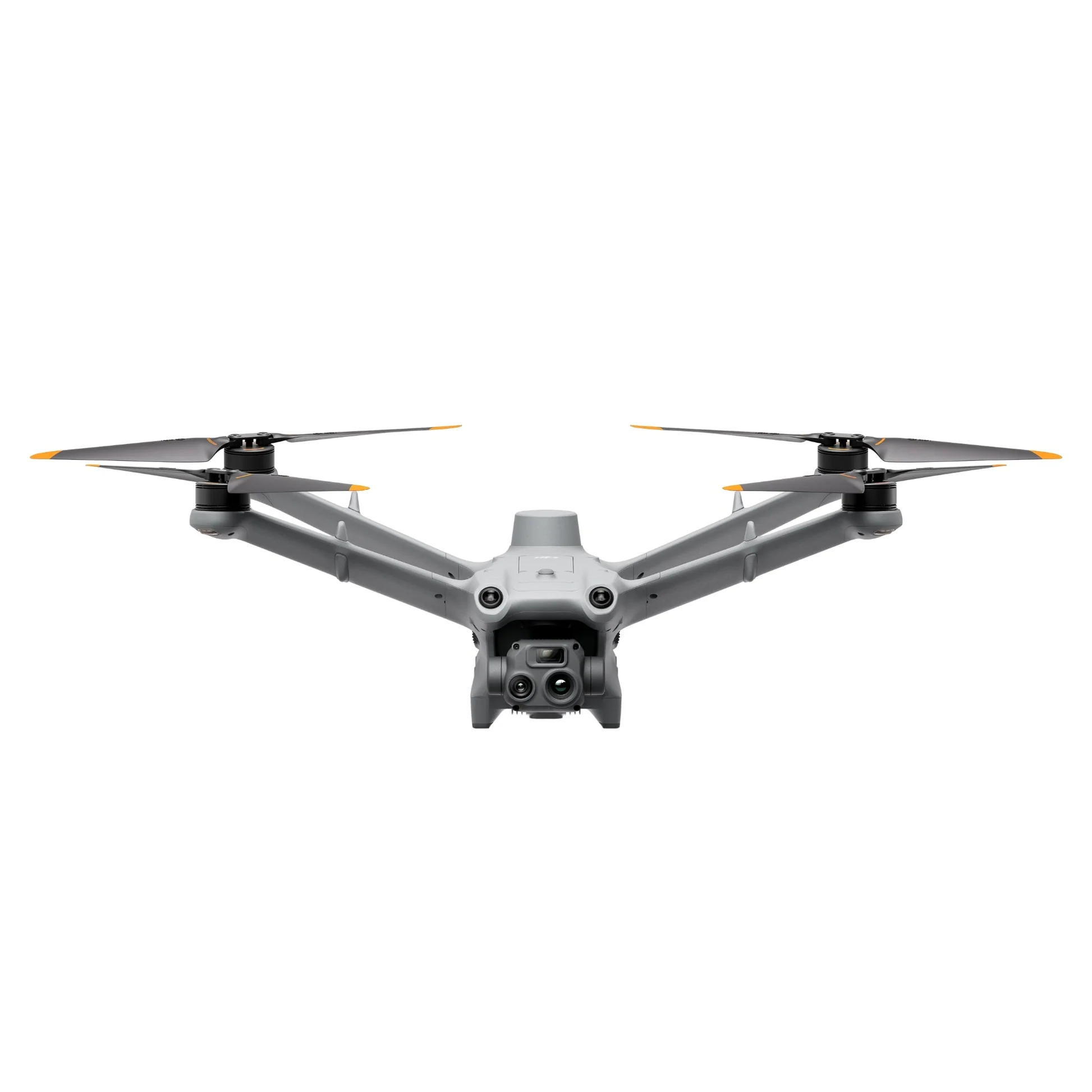

🚁 DJI Matrice 3TD – Thermal Imaging Excellence

The Matrice 3TD is engineered for demanding tasks such as infrastructure inspections, search and rescue operations, and security surveillance. Key specifications include:

Weight: 1.41 kg (aircraft only)

Maximum Takeoff Weight: 1.6 kg

Flight Time: Up to 50 minutes under ideal conditions

Operating Temperature: -20°C to 45°C

IP Rating: IP54

Camera System:

Wide-Angle Camera: 1/1.32-inch CMOS, 48MP

Telephoto Camera: 1/2-inch CMOS, 12MP

Thermal Camera: 640×512 resolution, expandable to 1280×1024 in super-resolution mode

RTK Module: Built-in for centimeter-level positioning accuracy

📦 DJI Dock 2 – Autonomous Drone Station

The DJI Dock 2 serves as a compact, high-performance drone nest, facilitating autonomous operations. Key features include

Design: Lightweight and compact, with dimensions of 1228×583×412 mm when opened and 570×583×465 mm when closed

Weight: 34 kg (without aircraft)

Ingress Protection: IP55 rating, suitable for moderate weather environments

Temperature Range: Operates between -25°C and 45°C

Charging: Batteries can be charged from 20% to 90% in approximately 32 minutes

Monitoring: Equipped with internal and external fisheye cameras for real-time monitoring of the drone and surrounding environment

Autonomous Operations: Supports automated takeoff, landing, and charging, reducing the need for human intervention

🔗 Integrated Solution – Matrice 3TD with DJI Dock 2

Combining the Matrice 3TD with the DJI Dock 2 creates a robust autonomous drone system capable of performing continuous missions. Benefits include:

Automated Operations: Seamless integration allows for scheduled missions without manual intervention

Remote Monitoring: Operators can monitor drone status and environmental conditions in real-time

Efficient Data Collection: Ideal for large-scale inspections and surveillance tasks

Enhanced Safety: Built-in safety features ensure reliable operation in various conditions
